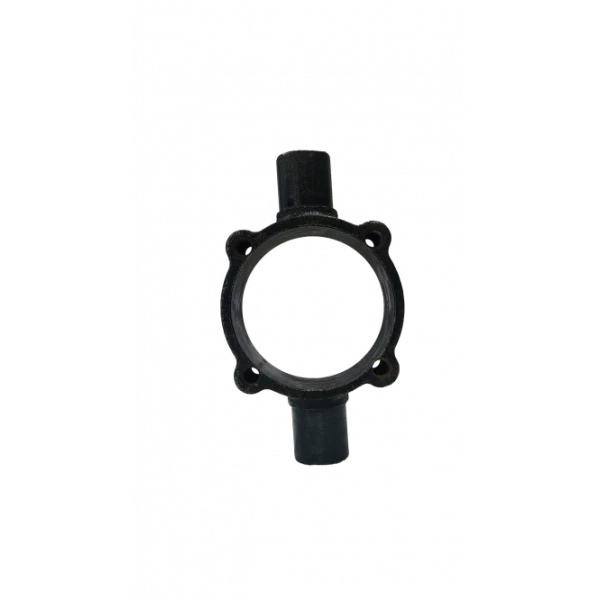

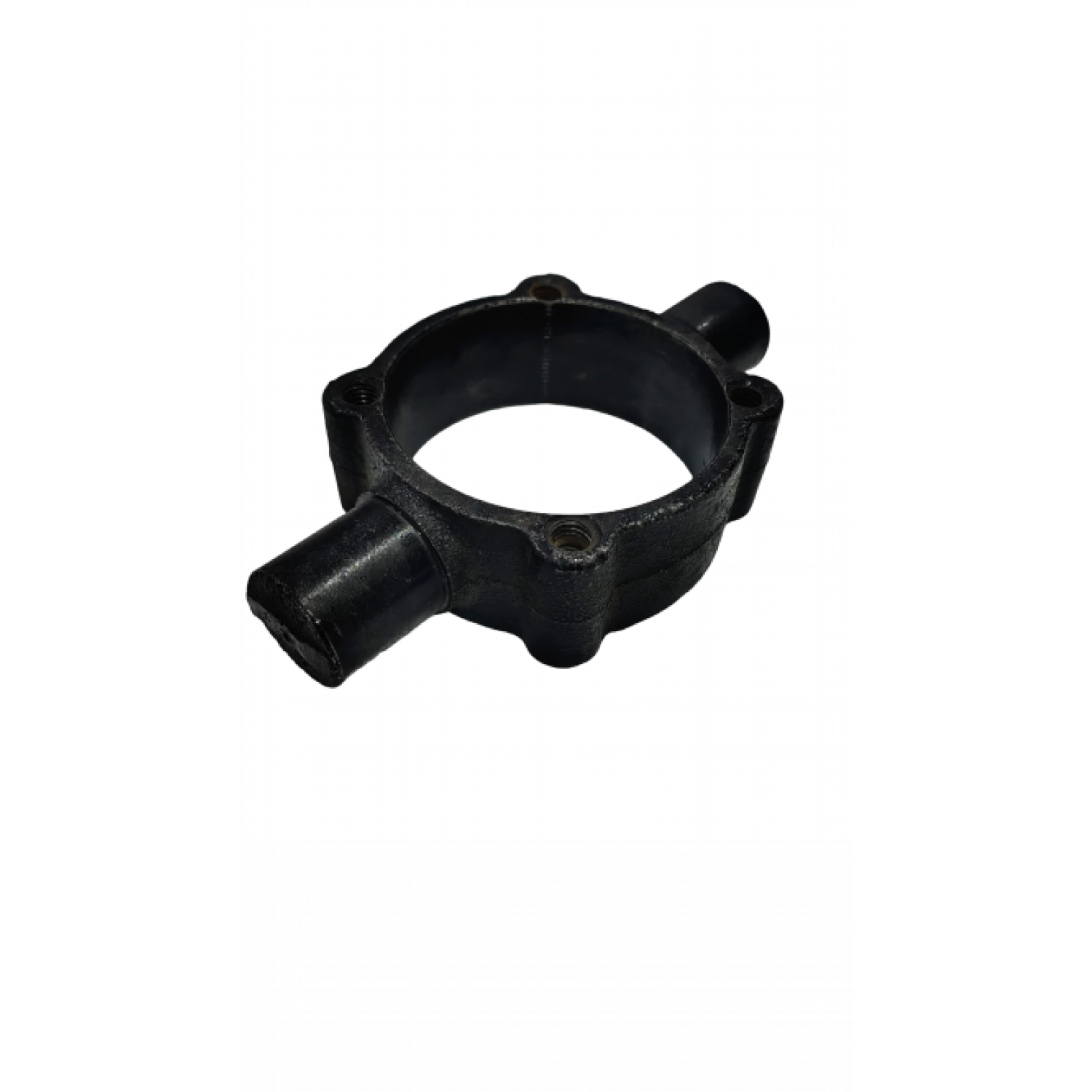

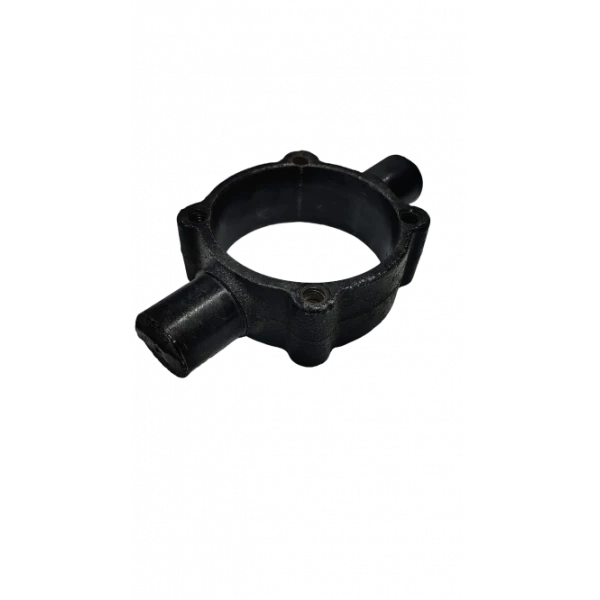

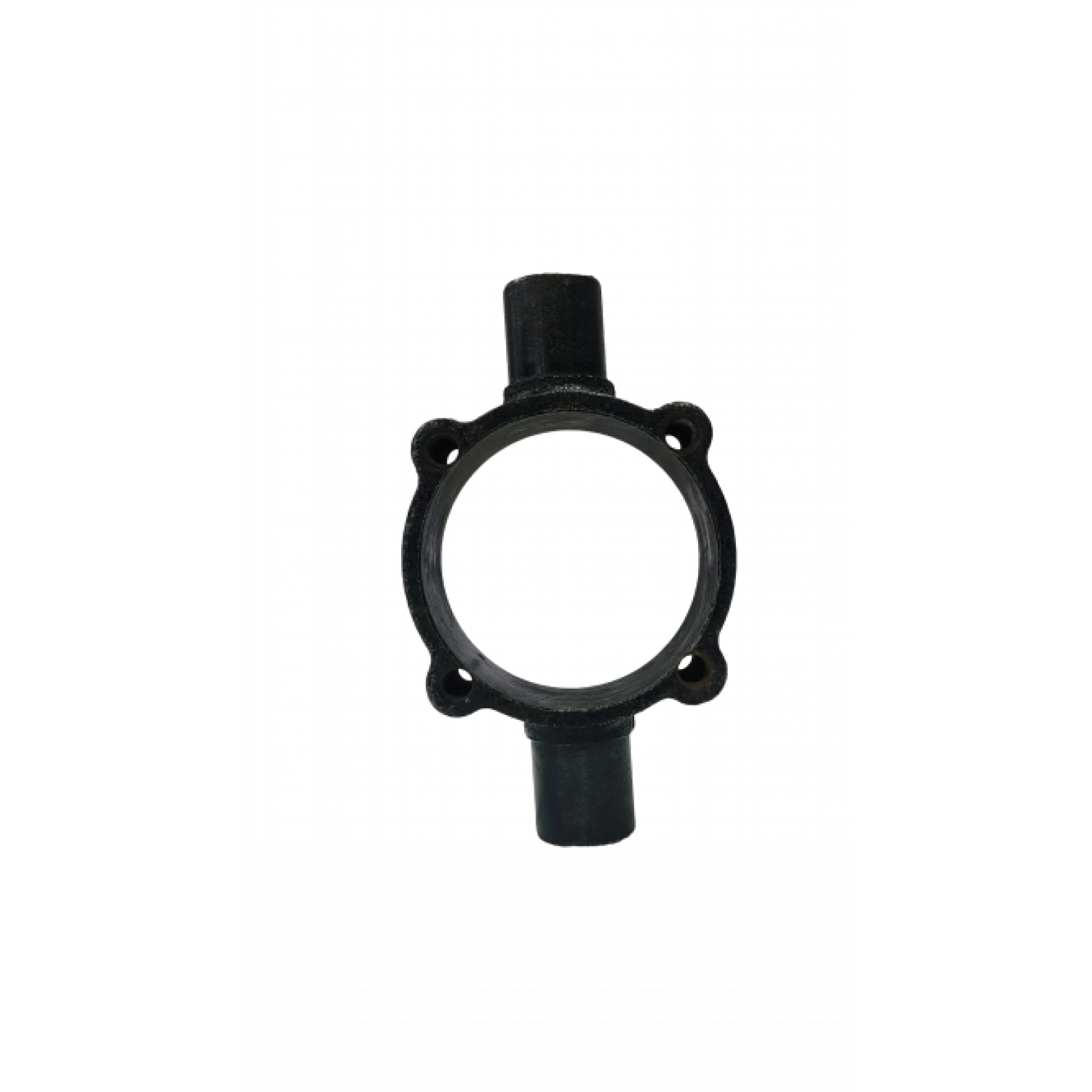

TC Center Trunnion

Some cylinder applications don’t move in a fixed straight line. They need a pivot point in the middle so the cylinder can follow the motion of the mechanism. That’s where TC Center Trunnion is used. Cosmic Airmatics is manufacturing and supplying TC Center Trunnion in Ahmedabad for setups where controlled angular movement is required.

TC Center Trunnion is mounted at the center of the cylinder body and allows it to rotate slightly during operation. This type of mounting is useful in applications like lifting arms, tilting mechanisms, and machines where the cylinder needs to move along an arc instead of a straight path. It helps in reducing side load on the piston rod when movement is not perfectly linear.

In many setups, cylinders are fixed rigidly even when motion is angular. That creates stress on the rod and internal parts. Over time, it leads to seal damage and uneven wear. Using a TC Center Trunnion solves this issue, but only when positioning and alignment are handled properly.

Then there’s the matter of load balance. Since the mounting is at the center, uneven weight distribution can affect movement. Proper selection based on cylinder size and application load is important. We keep dimensional accuracy and machining quality in control so the trunnion fits correctly and operates smoothly.

We are supplying TC Center Trunnion in Ahmedabad, across Gujarat, and to different industries in India where pivot-type mounting is needed for stable cylinder operation.

If your application involves angular movement or you are facing side load issues in existing setup, you can share your details with us. We will check and suggest suitable TC Center Trunnion options that support proper movement and reduce stress on the system.

Technical Specification :
